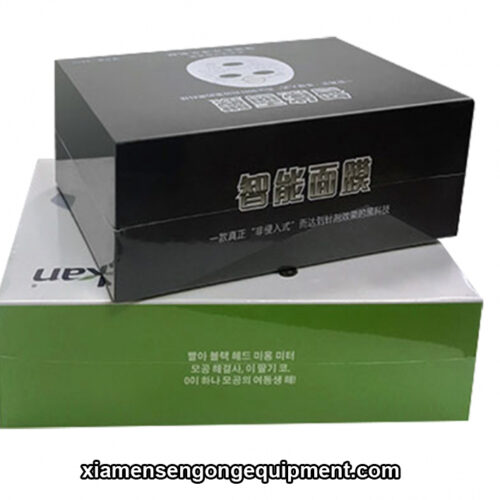

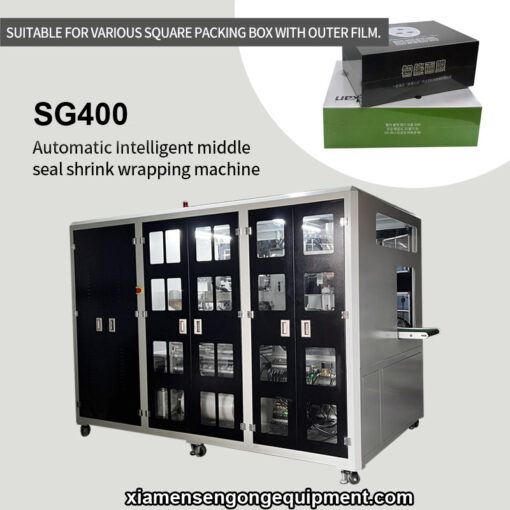

Purpose：Suitable for various square packing box with outer film.
Applicable Products：Medicine box、food box、health care box、cosmetic box、tea box、mobile phone case、mobile phone battery case、mobile power box、Data cable box、tablet cases etc or others products which require lamination, can moisture proof、moisture proof、aesthetic effect and same time ensure the integrity of the internal items.
Feature：
1: Fully automatic bag making, sealing, film management, corner cutting.
2: Adopt PLC control system, human-machine interface text alarm light, can realize unmanned supervision function.
3 : Through servo-driven position parameter adjustment and mechanical manual adjustment.
4: Full automatic packing POF shrink film is faster than traditional manual packing,better quality.Increase production efficiency, Save production cost,Improve company competitive strength.
| Size: | L | 110mm-400mm | Working Height: | 920mm±20mm |
| W | 60mm-350mm | Power | AC220 20A 50HZ(single-phase) | |
| H | 30mm-150mm | Air Supply: | 0.5～0.7Mpa | |
| Screw accuracy: | ±0.1mm | Weight: | About1450Kg | |
| Packing material: | POF | Wrapping motor power: | 5.5KW | |
| Sealing temperature: | 170～260°C | Heat shrink machine power: | 16KW | |
| Product quality rate: | ≧99％ | Machine Dimension: | L2760mmxW1570mmxH1750 | |
| Operator: | 1-3 machines for 1 person | Speed: | 6～12pcs/min | |
