Application:

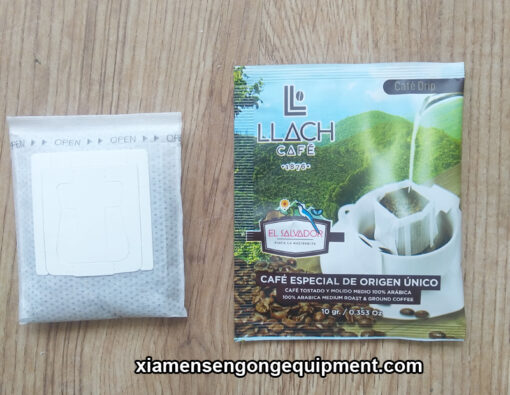

It is suitable for5 to 15gramdrip coffee inner and outer bagpackaging.
Features:
1.Outer bag sealing is controlled by thestepper motor, ensuring accurate and stable bag length positioning.
2.AdoptsPID temperature controllerfor more accurate temperatureadjustment.
3.AdoptsPLC controlsystem andtouch screen color monitor device, machine is very easy to operate.
4. The main machine parts is made of SUS304 stainless steel, so it ensures hygiene products output.
5. Some cylinders are imported, ensuring the accuracy and stability of the machines’ performance.
6. It can make the inner and outer bag at the same time automatically, which would highly improve the working efficiency.
7. Adopts automatic conveyor system.
8. Options: Date code printer.
9. There is a reserved connector to link with nitrogen making machine so as to flush nitrogen into the bag to extend its shelf life.
| Machine type: | Drip Coffee Packaging Machine Series |
| Machine model: | C19II |

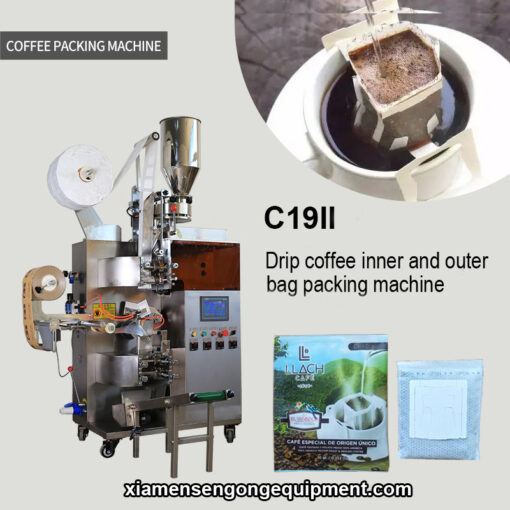

| Machine name: | C19II drip bag Robusta coffee packing machine |
| Sealing method: | Inner: 3 sides sealing; Outer: 3/4 sides sealing |
| Packing material: | Paper/Plastic, Plastic/Aluminum/Plastic, Paper/Aluminum/Plastic, Filter paper |
| Feeding system: | Measuring cup filler |
| Package range: | 5-15g |
| Inner bag size: | L:50-75mm , W:50-90mm |
| Outer bag size: | L:85-120mm , W:75-100mm |
| Inner bag film width (180mm): | Bag size: L90mm*W75mm |
| Outer bag film width(200mm): | Bag size: L120mm*W100mm |
| Power supply: | Single phase, 220V, 50HZ, 3.7KW |
| Packing speed: | 40-60bags/min |
| Machine weight: | 400KGS |
| Machine dimension: | 1200*900*1900mm(L*W*H) |
